yamamoto
|
|
MAGNETIC SEPARATOR
YMS-Series
|
|
|
|
Ask us for a demonstration.
Call Calibration Plus at 530 662-7752
High Magnetic Power 12,000G
Permanent Magnetic Power
High Screening Efficiency

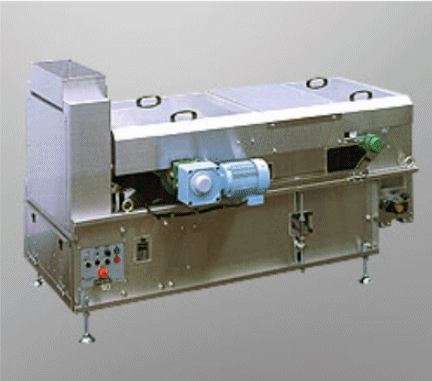

Yamamoto Magnetic Separator
Reliable Solution System

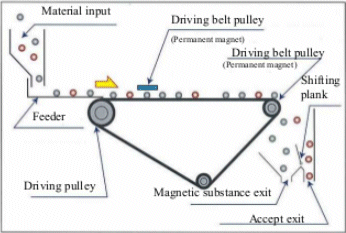

Our Magnetic Separator can eliminate mud-balls, pumice, stones that contain iron with its powerful permanent magnet and separate material into good and reject.
|
Features
|
- Brown Rice Milled
This Magnetic Separator can take out mud-balls and pumice, which are difficult to remove with Gravity Separators.
- Beans, Cereals
This Magnetic Separator can be used for a variety of things which contain iron.
- Feeding System
This Magnetic Separator has a special feeding system which enables it to feed a uniform amount of material. This system keeps evenly feeding the amount of material to create a high screening efficiency.
*
This Magnetic Separator may cause magnetic damage. Do not approach cell phones, watches, and other electronic devices and precision equipment. Do not approach this machine if you have a pace maker.
|
| Model Name
|
YMS-600
|
YMS-3000
|
YMS-4500
|
YMS-6000
|
|
Length (mm)
|
1,065
|
1,435 |
1,435 |
1,435 |
| Width (mm) |
290
|
748 |
1,027 |
1,327 |
| Height (mm) |
608
|
870 |
870 |
870 |
|
Power
|
100V
|
460V |
460V |
460V |
|
Belt
| 100V
|
100V |
100V |
100V |
|
Magnet
| 12,000G
|
12,000G |
12,000G |
12,000G |
|
Magnet range (mm)
| 100
|
450 |
700 |
1,000 |
|
Weight (kg)
| 40
|
170 |
250 |
350 |
|
Utility
| Brown rice, Milled rice, Beans, Wheat, Sesame, etc. |
|
Capacity (t/h) Rice, Red Bean
| 0.66
|
3.0 |
4.6 |
6.6 |
|
Soybean
| 0.44
|
2.0 |
3.1 |
4.4 |
|
Wheat
| 0.50
|
2.2 |
3.5 |
5.0 |
|
Sesame
| 0.14
|
0.64 |
1.0 |
1.4 |
*Above specifications and dimension may change due to Yamamoto’s continuous development program.
We create future of agriculture
YAMAMOTO CO.,LTD.
