Installing a Snapband-type bag filter
Step 1
![[step1.gif]](step1.gif)

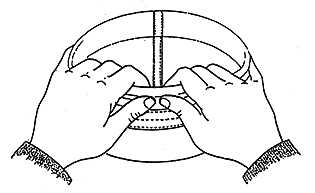

Grab bag on opisite side of seam holding it between thumb and fingers as shown.
|
Step 2
![[step2.gif]](step2.gif)

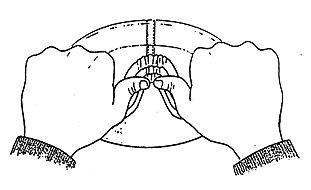

Push top of bag in with thumbs, forming a kidney snare. Fit groove in bag into tube sheet hole.
|
Step 3
![[step3.gif]](step3.gif)
Push buldge in snapband outward - bag should snap into place.
|
Improper Bag Fittings
![[badbag1.gif]](badbag1.gif)
Band does not snap into place - bag is loose. |
![[badbag2.gif]](badbag2.gif)
Bag turns easily in tube sheet hole - bag is too small. |
![[badbag3.gif]](badbag3.gif)
Bag is not properly seated in it's groove - adjust correctly. |
